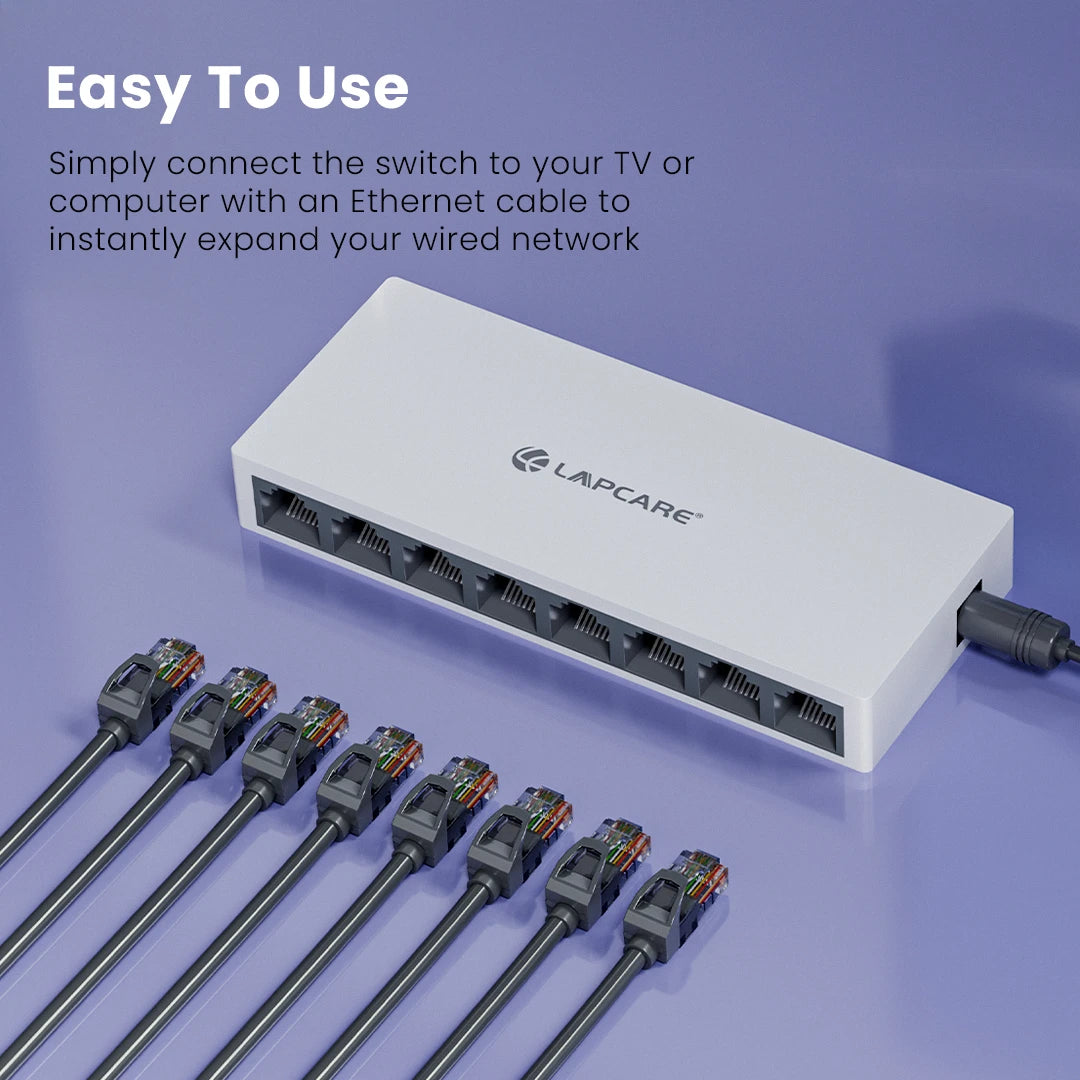

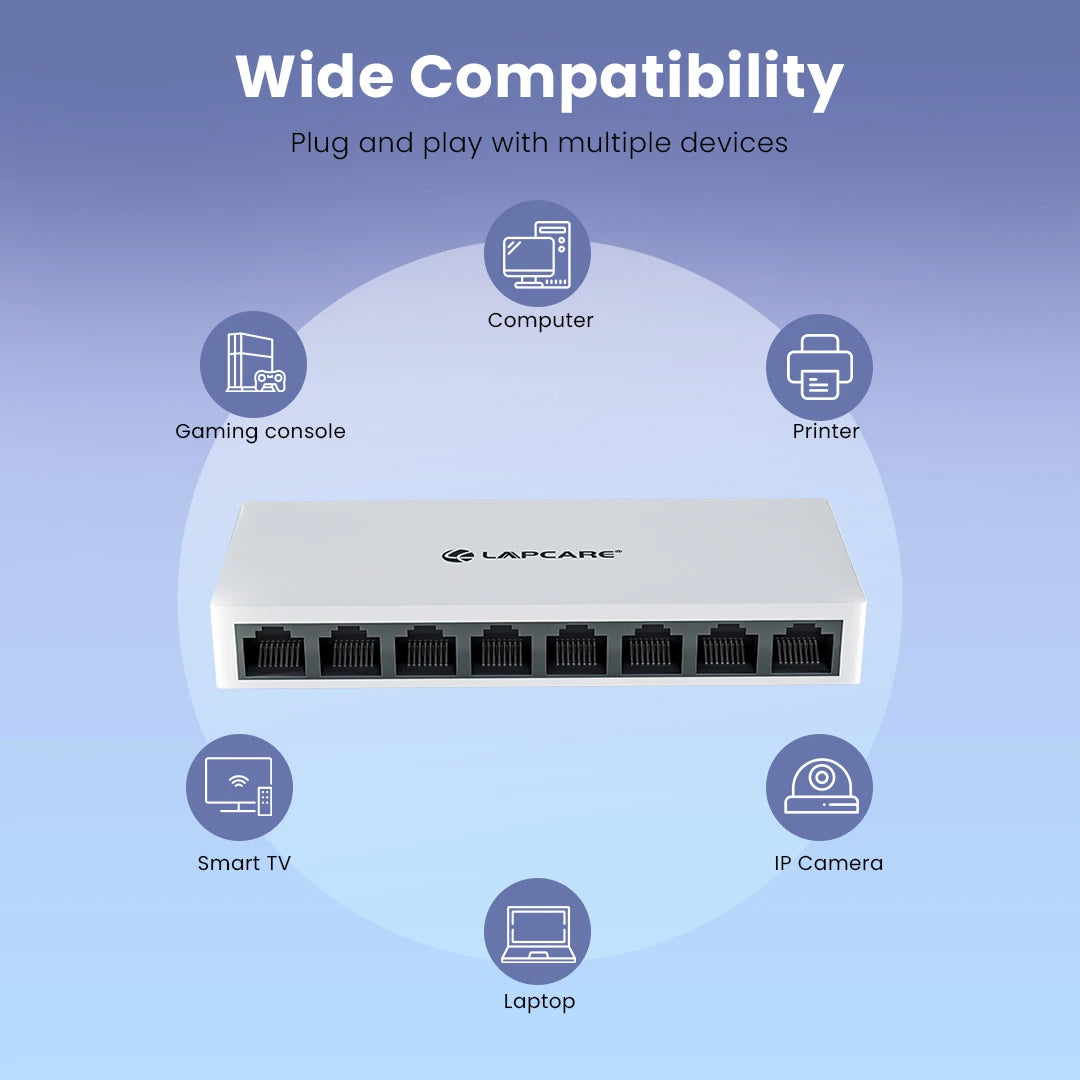

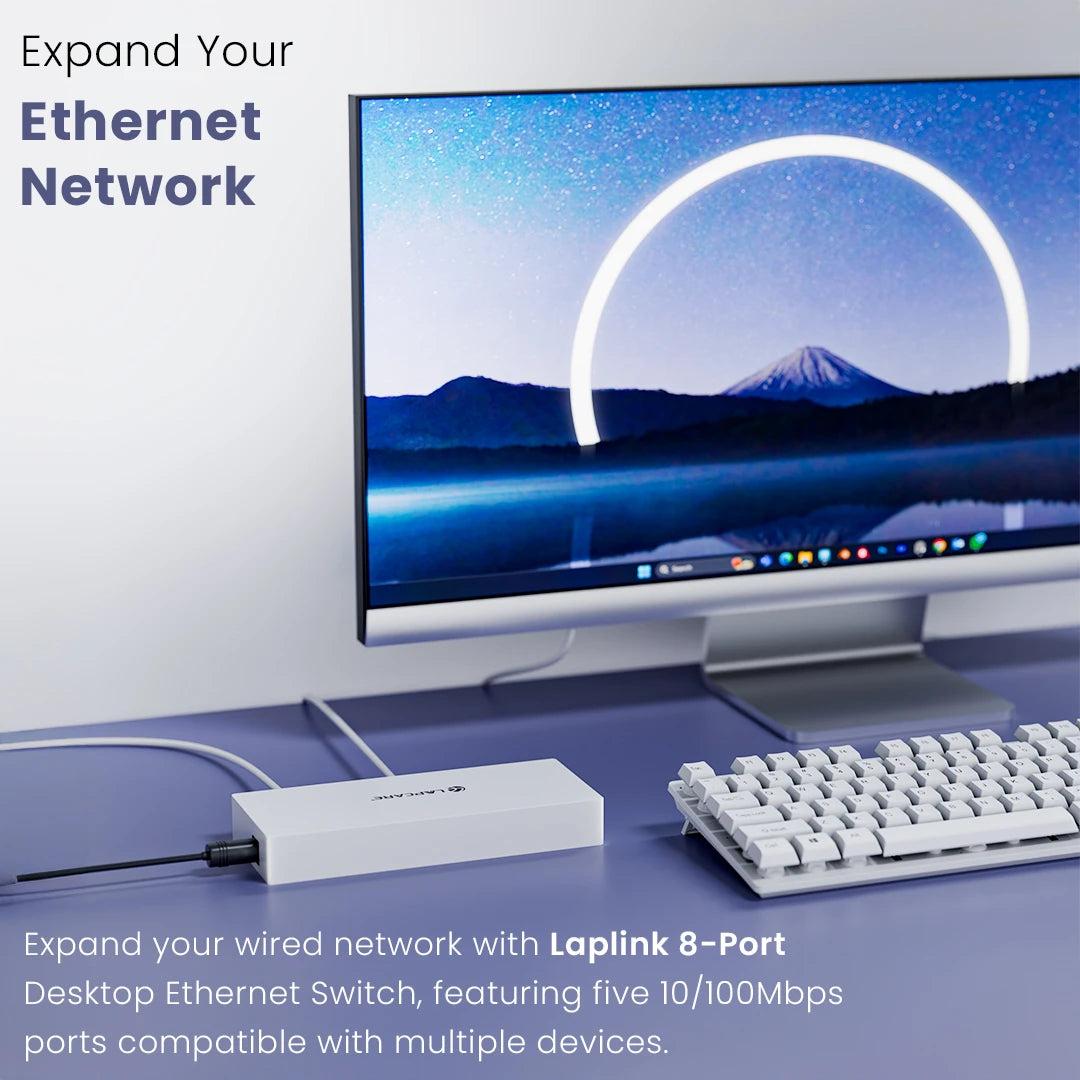

Laplink Ethernet Switch

Warranty: 1 Year

Features:

• 8 Fast Ethernet ports supporting 10/100 Mbps speeds with Auto MDI/MDI-X
• Compliant with IEEE 802.3, 802.3i, 802.3u, and 802.3x standards for broad compatibility
• Store-and-forward switching for reliable and error-free packet transmission
• High switching bandwidth of 1.6 Gbps and packet forwarding rate of 1.15 Mpps
• Supports up to 1,000 MAC address entries and 768KB buffer memory for smooth traffic handling
• Extended transmission distances:
• 10BASE-T: up to 250 meters using Cat3/4/5 UTP cable
• 100BASE-TX: up to 150 meters using Cat5 or higher UTP cable
• Low power consumption (<3W standby) for energy efficiency
• Plug and play operation Ñ no configuration required
• Clear LED indicators for power and link/activity status on ports
• Compact desktop form factor ideal for home and small office environments
• Eco-friendly design minimizing environmental impact

Technical Specifications:

• 8 _ 10/100Base-TX RJ45 Ports (Auto MDI/MDI-X)
• IEEE 802.3 (10BASE-T), IEEE 802.3i, IEEE 802.3u (100BASE-TX), IEEE 802.3x (Flow Control)
• 10/100Mbps Auto-Negotiation
• Store and Forward Switching (Full Wirespeed)
• 1.6 Gbps Bandwidth (Backplane)
• 1.15 Mpps Packet Forwarding Rate
• 1K MAC Address Table Entries
• 768KB Buffer Memory
• Transmission Distance: 10BASE-T: Up to 250 meters (Cat 3/4/5 UTP)
• 100BASE-TX: Up to 150 meters (Cat 5 or higher UTP)
• External Power Adapter Ð DC 5V/1A
• Power Consumption < 3W (Standby)
• LED Indicators: PWR (Power), 1Ð5 Link LEDs
• Plug & Play Installation
• Desktop Form Factor
• Eco-Friendly Design
