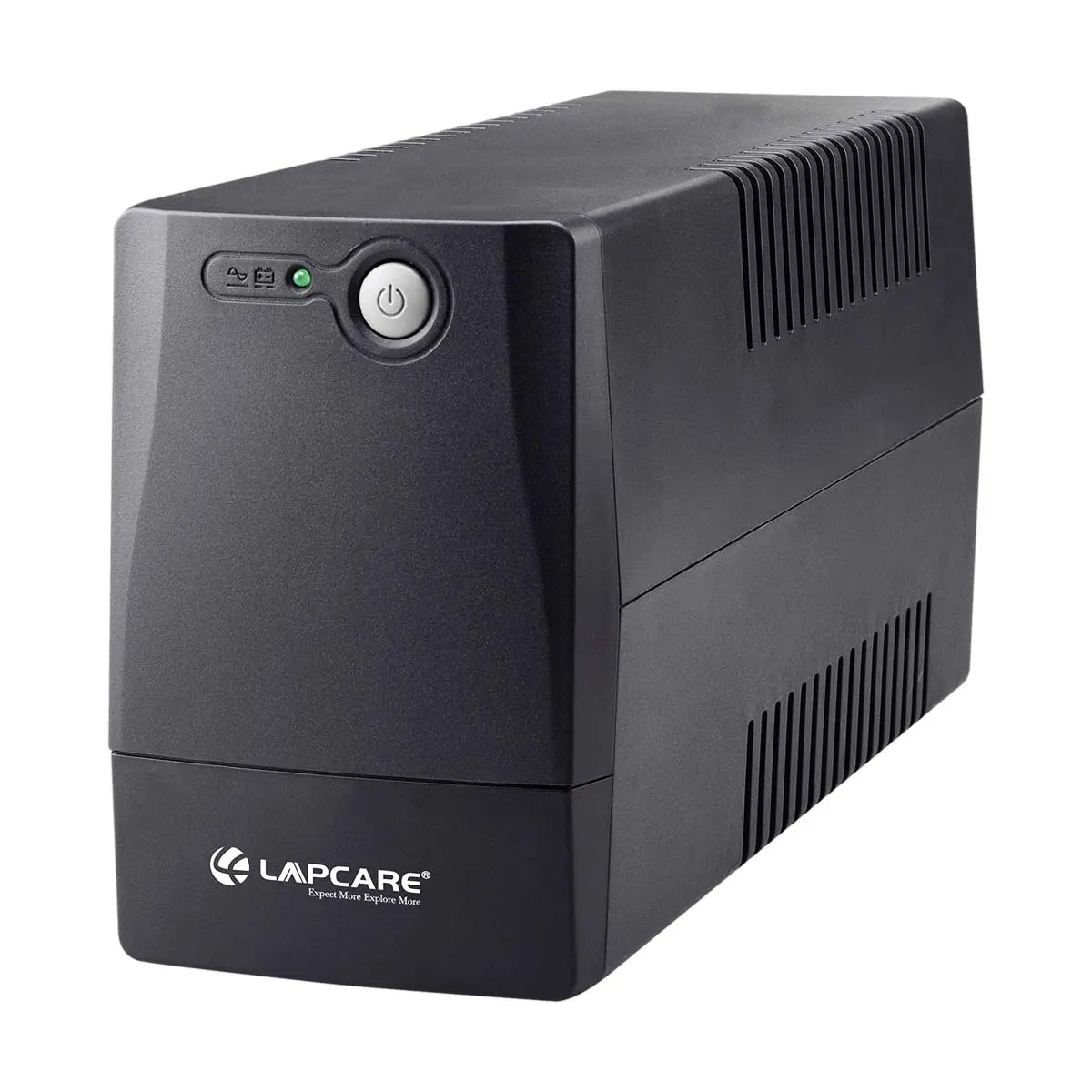

600VA UPS (Lapon-750)

Warranty:

Features:

• Compact size
• Off-mode charging
• Cold start function
• Generator compatible
• Simulated sine wave output
• Auto restart while AC is recovering
• Boost and buck AVR for voltage stabilization
• Excellent microprocessor control guarantees high reliability

Technical Specifications:

• Battery Type & Number 12 V 7 Ah x 1
• Typical Recharge Time 6 hours recover to 90% capacity
• AC Mode Green lighting
• Battery Mode Green flashing
• Input Voltage 230 VAC
• Input Voltage Range 140-300 VAC
• Input Frequency Range 60/50 Hz (auto sensing)
• Output Voltage 230 VAC
• Output AC Voltage Regulation (Batt. Mode) ±10%
• Output Frequency Range (Batt. Mode) 60 Hz or 50 Hz ±1 Hz
• Output Transfer Time : Typical 4-8ms, 13ms max
• Otput Waveform (Batt. Mode) Simulated Sinewave
• Noise Level : Less than 40dB
• Humidity 0-90 % RH @ 0- 40°C (non-condensing)
• Full Protection Overload, discharge, and overcharge protection
• Overload Sounding every 0.5 second
• Battery Mode Sounding every 10 seconds
• Low Battery Sounding every second
• Fault Continuously sounding
