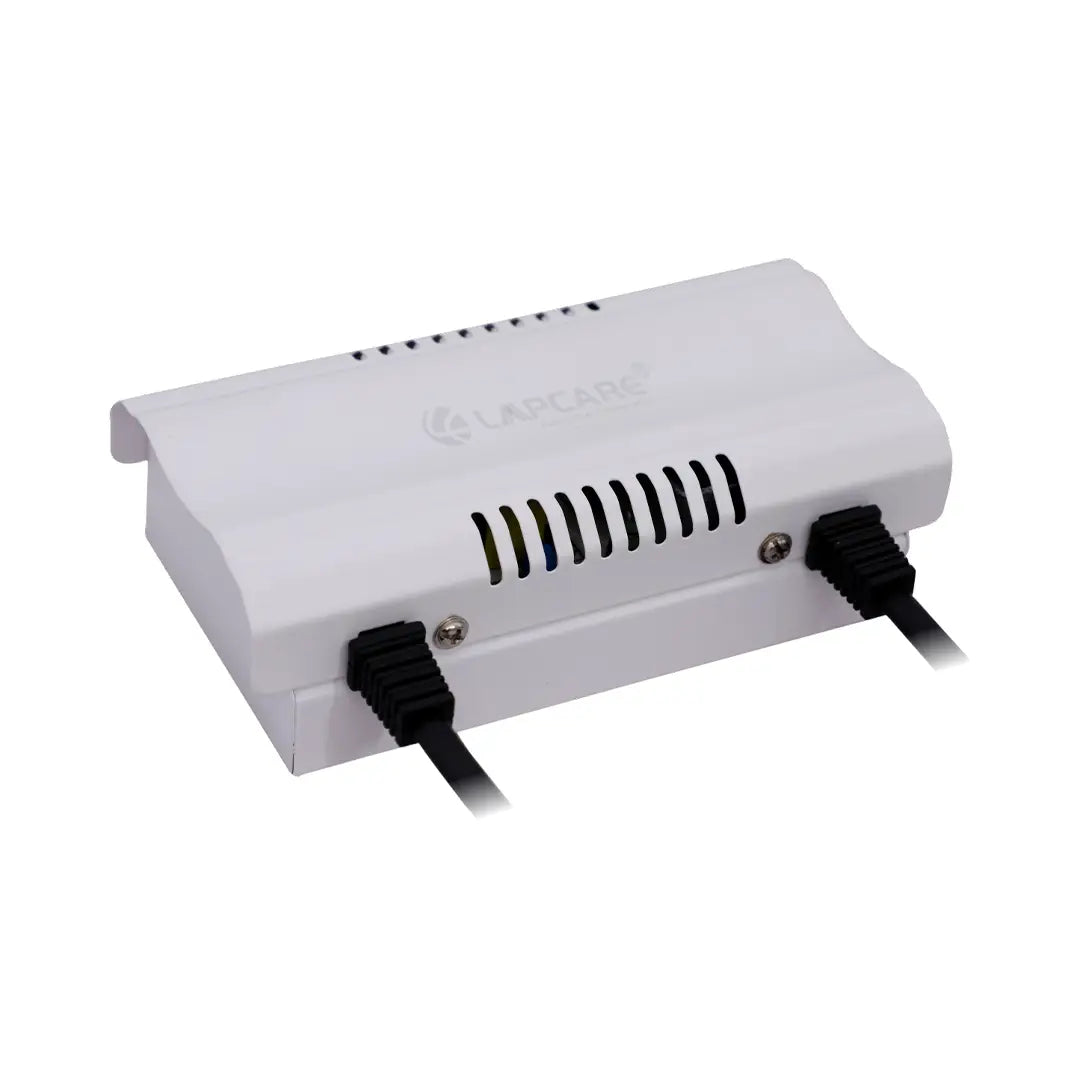

CCTV SMPS with 8 channels

Warranty:

Features:

• Universal AC input /full range
• Protection : Short Circuit/Over Voltage/Over Loaded/Over temperature
• LED Indicators for power on for each channel
• Long distance voltage drop adjustment with cable compensation swith
• Low ripple voltage, low energy consumption with high efficiency
• Stabilize output with low interference
• No load power consumption<0.2w
• 100% full load built in test for long life and high reliability

Technical Specifications:

• Input Voltage : 140-300Vac
• Input frequency : 50Hz
• Input current : 1A@120Vac
• Output Voltage : DC12V-DC15.5V
• Output Current : 0-3.5A Max
• Load Efficency : >85%
• Housing Mateial : ABS
• Dimensions : 144X107X35mm
• Weight : 220g
